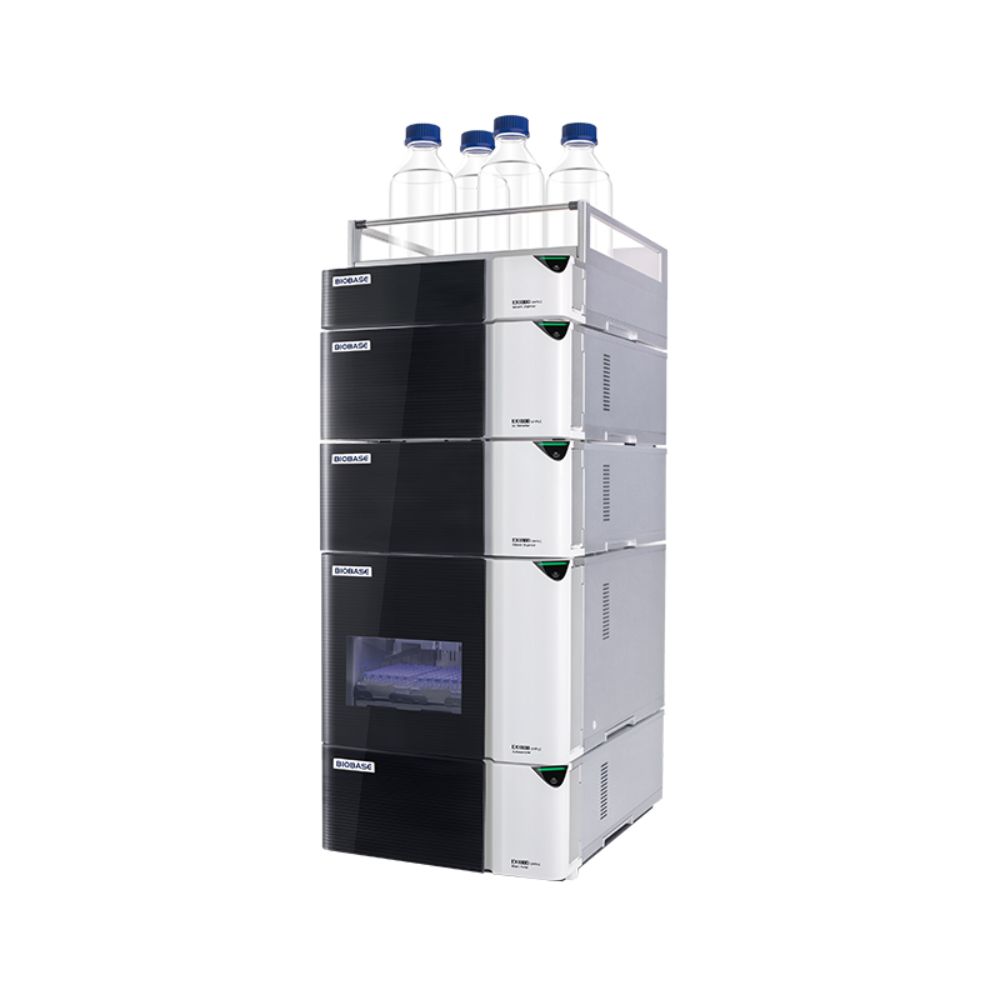

BK-1800UHPLC Ultra-high Performance Liquid Chromatography System
Model: BK-1800UHPLC(Type I) Binary gradient automatic system with UV BK-1800UHPLC(Type II) Binary gradient automatic system with PDA
Ultra-high Performance Liquid Chromatography (UHPLC) is an advanced liquid separation technique evolved from HPLC. It separates mixture components based on the difference in partition coefficient and adsorption capacity between mobile phase and stationary phase via repeated equilibrium distribution, and matches high-speed detectors to complete efficient qualitative and quantitative analysis.
1. Multiple detection modules are optional, including PDA, UV/VIS, FL, RI and ELSD.
2. Built-in real-time solvent pressure compensation control improves detection accuracy; integrated check valve ensures stable fluid delivery and reduces daily maintenance workload.
3. Designed with low dead-volume flow path and high-pressure resistant structure. It delivers higher separation resolution, shorter analysis cycles and lower organic solvent consumption compared than standard HPLC systems.
4. High-frequency detector sampling ensures complete data collection of narrow chromatographic peaks, greatly enhancing sensitivity and reproducibility for trace impurity detection.
EX1800 ULBP Binary Ultra-High Pressure Linear Motor Infusion Module:
| Liquid Infusion System | Digital linear motor driven serial pump |
| Flow Rate Range | 0.001~5.000ml/min, 0.001ml/min increment |
| Max Output Pressure | 120MPa |
| Flow Accuracy | ≤0.06%RSD |
| Flow Precision | ≤±0.3% |
| Compression Compensation | Automatic, continuous, selectable solvent type |
| Post-column Cleaning | Automatic post-column cleaning function, which can control the cleaning flow rate |
| Gradient Setting Range | 0~100% |
| Extended Application | Record the number of times the plunger rod seal is used |
EX1800 SUV Detector:
| Flow Cell Volume | 1.0μl |
| Light Source | Deuterium lamp |
| Wavelength Range | 190~700nm |
| Spectrum Bandwidth | 4nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Precision | 0.1nm |
| Noise | ≤0.2*10⁻⁵AU (Air cell, 254nm, 20°C) |
| Drift | ≤0.4*10-4AU/h (Air cell, 254nm, 20°C) |
| Sampling Frequency | 100Hz |
EX1800 PDA detector:
| Number of Diode Arrays | 512 |
| Light Source | Deuterium lamp + tungsten lamp |
| Wavelength Range | 200~800nm |
| Wavelength Precision | ±0.5nm |
| Wavelength Accuracy | ±0.1nm |
| Noise | ±5*10 -6AU, under specified conditions |
| Drift | 1*10-4AU/h, under specified conditions |
| Sampling Frequency | 100Hz |
| Spectral Bandwidth | 10nm |
Model | BK-1800UHPLC(Type I) Binary gradient automatic system with UV | BK-1800UHPLC(Type II) Binary gradient automatic system with PDA |
Diode Array Detector | / | Yes |
UV Detector | EX1800 SUV*1 | / |
Pump | EX1800 ULBP*1 | |
Solvent Manager | EX1800SO SD4*1 | |
Auto-sampler | EX1800 UAS*1, pressure resistant 120MPa, max 108pcs 2mL vials, quadruple protection device | |
Column Oven | EX1800 CO*1, temperature range: RT+5~80℃ | |
Pronaos EP-C18, 5μm, 4.6*250mm | Yes | |
Workstation EX-Clarity C50 | Yes | / |
Power Supply | AC220/110V, 50/60Hz | |
Optional Accessory | UV detector, RI detector, PDA detector, ELS detector, FL detector, column, EX1800 CO II refrigerated column oven: temperature range: RT-15~80℃ Auto-sampler: EX1800 UAS II, pressure resistant 120MPa, max 192pcs 2mL vials, quadruple protection device EX1800 UAS C II, pressure resistant 120MPa, max 192pcs 2mL vials, quadruple protection device, with cooling function | |
Package Size (W*D*H) | 720*580*410mm*4; 720*580*510mm | 720*580*410mm*4; 720*580*510mm |
Gross Weight | 32kg; 21kg; 18kg; 18kg; 33kg | 32kg; 23kg; 18kg; 18kg; 33kg |
