| Speed range | 10000-30000rpm | Max linear velocity | 22.7-36m/sec |
| Speed set | 6 stage | Working volume | 10-40000mL |
| Max. viscosity | 10000mPa-s | Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
| Noise | 79dB(A) | Protection class | IP20 |
| Motor Type | AC carbon brush motor | Power | 500W |
| Voltage, Frequency | 110-120V/60Hz, 220-240V/50-60Hz | Dimension [WxDxH] | 75×75×280mm |
| Weight | 1.7kg | Permissible ambient temperature | 0-40°C |
| Permissible ambient humidity | 85% RH |

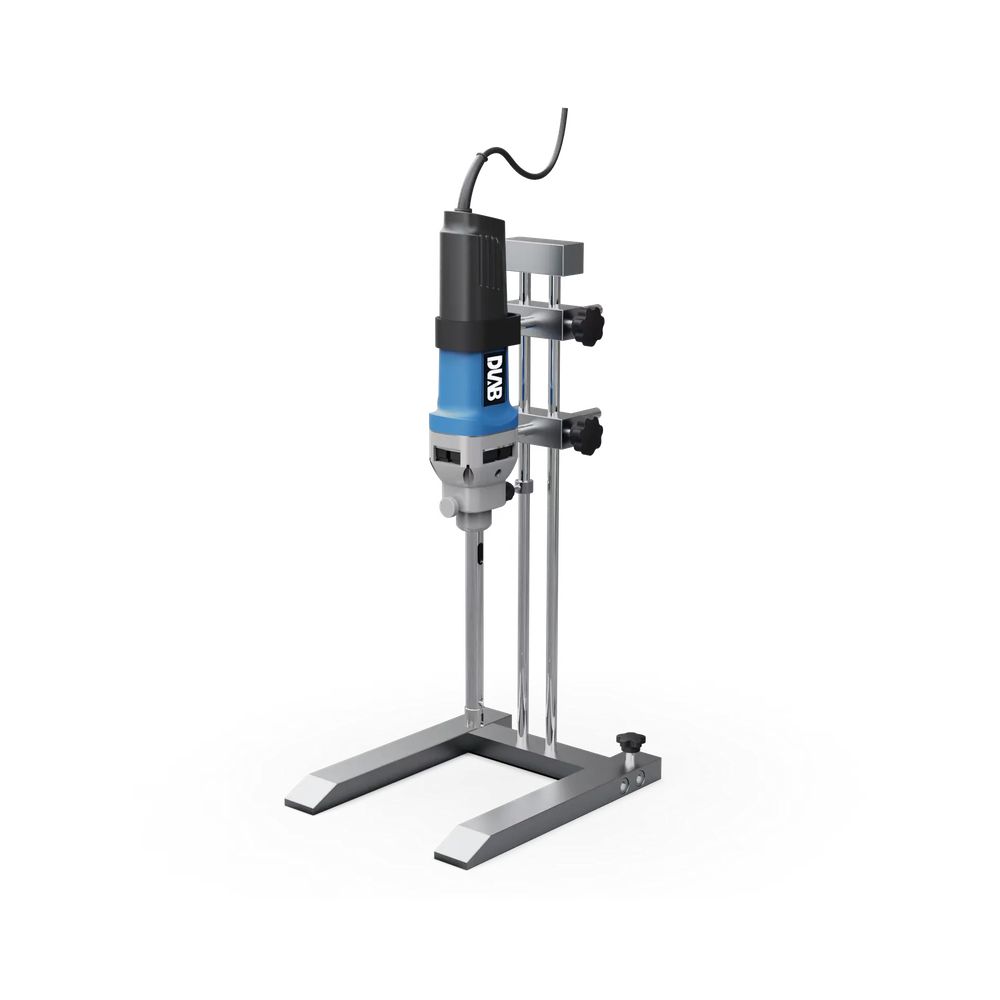

D-500 High Shear Homogenizer
Product ID: D-500
High quality 316L stainless steel with corrosion and autoclave resistance
Rotor with simple design can be dismounted, cleaned, and sterilized conveniently
6 speed levels
Applicable for sample with viscosity up to 10000mPa·s
Replaceable rotors and stators sharing the same shaft, cost-effective
Automatic overload protection mechanism maximizes the working life of motor.
Smooth motor start, stable acceleration without spillage risk
Product certification:
Complies with applicable RoHS requirements.
Product Applications:
Pre-treatment of plant and animal tissue samples for rapid disruption; development of drug carrier formulations such as emulsions, liposomes, and nanodispersions; water/oil phase emulsification of creams and lotions; homogenization of syrups, dairy products, and sauces; homogenized dispersion of polymers, additives, and nanomaterials; pre-treatment and assisted extraction of soil and sediment samples.
Target Customers:
Biology, medicine, pharmacy, chemistry, materials, food science, and university research institutes; R&D centers for biopharmaceuticals, food industry, and cosmetic formulations; R&D centers for polymer chemicals, coatings, and lithium battery materials; analytical laboratories at food and drug regulatory agencies and environmental monitoring stations.
