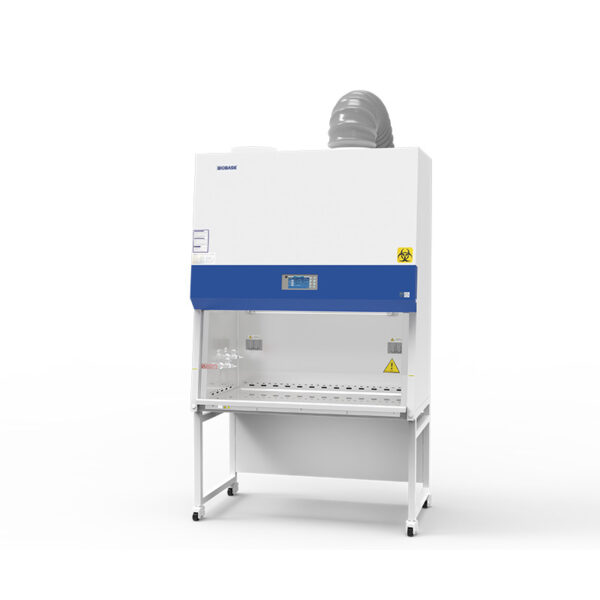

NSF Certified Class II B2 Biological Safety Cabinet
Product ID: BSC-4FB2-NA BSC-4FB2-GL
Brand: Biobase -CHINA
Introduction:
This product belong to Class II B2 Biosafety Cabinet(BSC) which fully meets the requirements of US Standard ANSI/NSF49:2016. BSC is a kind of negative pressure filtration system for protecting operator, laboratory environment and experiment materials.
NOTE: No Exchange No Return Learn More
Warranty: 1 year from the delivery date, covering manufacturing defects. It does not cover breakage or misuse.
Quality is our priority. Our laboratory equipment is built for precision, durability, and dependable performance, ensuring consistent, reliable support for all your scientific needs.
1. Motorized front window.
2. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
3. The power-on password can be set to prevent mis-operation by irelevant personnel.
2. EC Fan, automatically adjust the wind speed.
3. With power-off memory function, the state before power-off will be restored after power-on and there will be visual prompts and alarms.
4. The integrated design of the operation area makes it easy to disassemble and clean.
5. The cabinet is separated from the base. The height of the adjustable base can be customized.
6. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan and sockets.
8. The front window closes the trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
9. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable.air speed adjustable with filter block.
Technical Parameters:
| Model | BSC-4FB2-NA | BSC-4FB2-GL |
| External Size(W*D*H) | 1383*775*2250mm | |
| Internal Size(W*D*H) | 1210*600*660mm | |
| Tested Opening | Safety height 200mm (8″) | |
| Max Opening | 470mm | |
| Exhaust Airflow Volume | 100%: 1320m³/h(776cfm) | |
| Front Window | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | |
| HEPA Filter | Two, 99.995% efficiency at 0.12μm, filter life indicator | |
| Filter Guard Type | Aluminum alloy frame | |
| Noise | NSF49≤67dB/EN 12469≤65dB | |
| Illumination | ≥1000Lux | |
| Display | Color touch screen | |
| Waterproof Socket | 2, Total consumption: ≤500W | |
| Tap | Water tap*1, Gas tap *1 | |
| Ground Resistance | ≤ 0.10Ω | |
| Power Supply | AC230V, 50Hz; 115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | |
| Consumption | 400W | |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | |
| DC Motor | One ECM motor, 115V& 230V acceptable, speed adjustable, high efficiency and
low power consumption |
|
| Material | Working area: 304stainless steel
Frame and decorative plate: cold-rolled steel with anti-bacteria power coating |
|
| UV Lamp | 30W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | ||
| Illuminating Lamp | 20W*2 | |
| LED lamp | ||
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control | |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Exhaust duct | |
| Package Size (W*D*H) | 1540*1080*1900mm | |
| Gross Weight | 340Kg | |
Note:Â Customers need to prepare an external exhaust fan or exhaust system by themselves.
