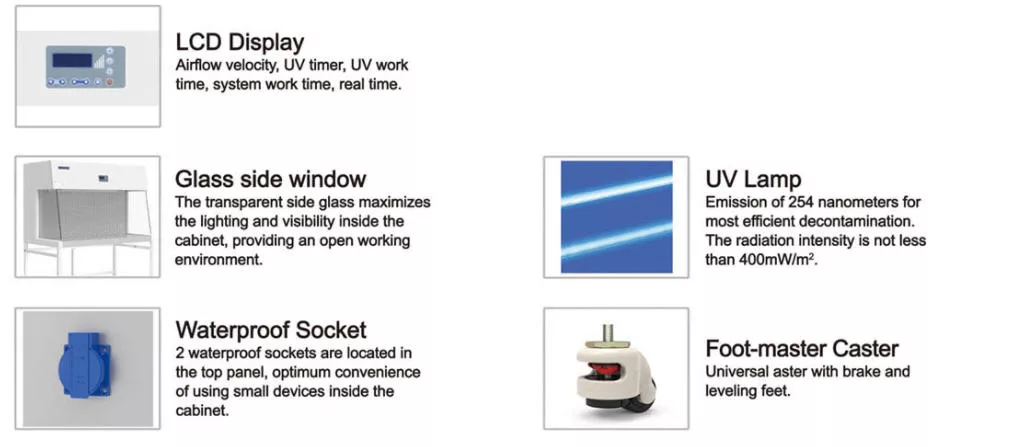

LCD Display:Microprocessor control system, LCD display
Waterproof socket :
2 waterproof sockets are located in the top panel,
for optimum convenience of using small devices inside the cabinet.
Side glass window:
The transparent side glass windows maximize light and
visibility inside the cabinet, providing a bright and open working environment.
TECHINICALÂ PARAMETERS
Model |
BBS-H1100 (Previous name: BBS-DDS) |
BBS-H1500 (Previous name: BBS-SDS) |
BBS-H1800(X) |
External Size(W*D*H) |
1100*808*1690mm |
1500*808*1690mm |
1800*808*1890mm |
Internal Size(W*D*H) |
1000*500*600mm |
1400*500*600mm |
1700*500*800mm |
Work Surface Height |
750mm |
||
Display |
LCDÂ Display |
||
Airflow Velocity |
Average of 0.30~0.45m/s |
||
Material
|
Main Body: Cold-rolled steel with anti-bacteria powder coating |
||
Work Table:304 stainless steel |
|||
Side Windows:8mm toughened glass, anti-UV |
|||
Pre-filter |
Polyester fiber, washable |
||
HEPAÂ Filter |
99.999% efficiency at 0.3um |
||
Noise |
<65dB(A) |
||
LEDÂ Lamp |
12W*1 |
16W*1 |
16W*2 |
UVÂ Lamp |
20W*1 |
30W*1 |
20W*2 |
Emission of 253.7 nanometers |
|||
Consumption |
200W |
300W |
400W |
Waterproof socket |
Two, total load≤500W |
||
Caster |
Universal caster with leveling feet |
||
Power Supply |
AC220V±10%; 50/60Hz;  110V±10%, 60Hz |
||
Standard Accessory |
LED lamp, UV lamp*2,Base stand, Waterproof socket*2, Hook*10 |
||
Optional  Accessory |
Electric height adjustable base stand | ||
Gross Weight |
170kg |
185kg |
240kg |
Package Size(W*D*H) |
1250*1030*1350mm |
1650*1050*1350mm |
1950*1050*1550mm |
Base stand 1pc
LED lamp 1pc
UV lamp 2pcs
Waterproof socket 2pcs
Hook 10pcs
