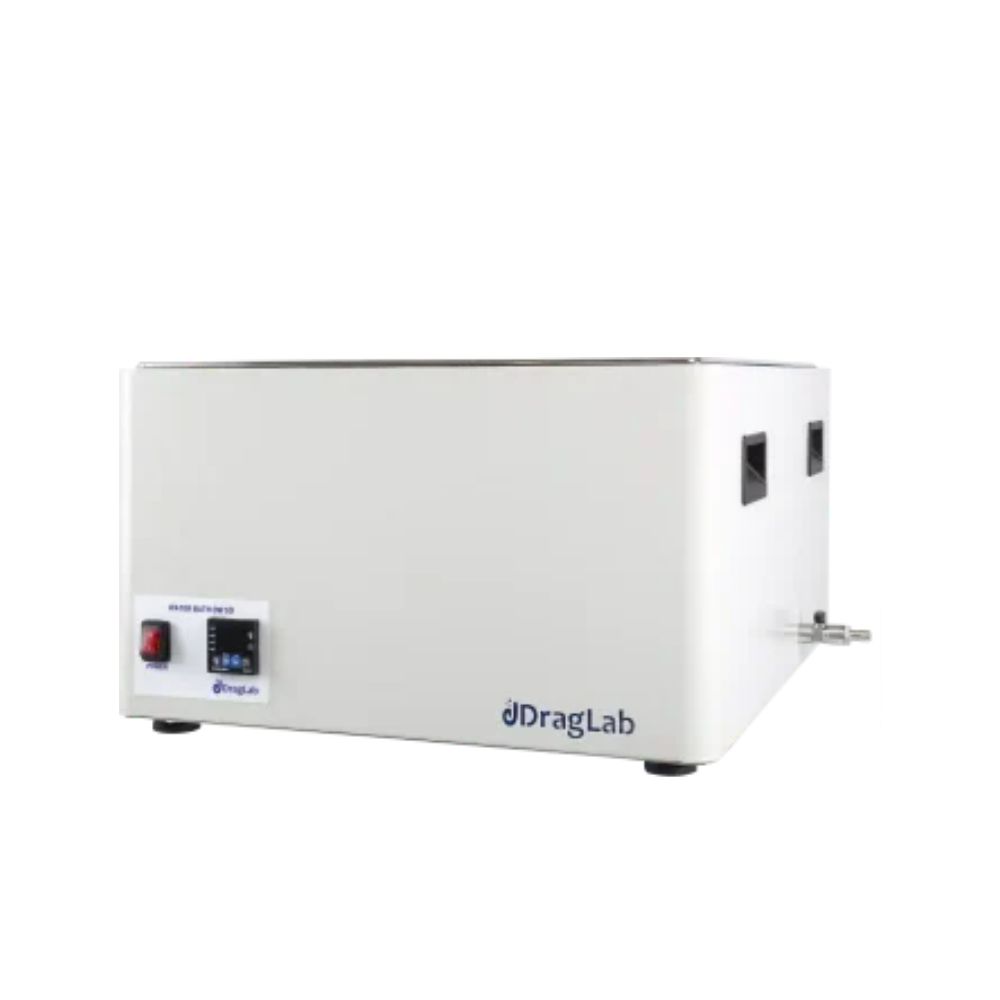

Water Bath DW 50 | Caresource

Water Bath DW 50 – Compact Precision Water Bath

1

0%

2

0%

3

0%

4

0%

5

0%

Digital temperature-controlled water bath for laboratories

Request A Quote

Categories: Scientific & Laboratory Equipment, Laboratory Equipment, Water Bath

features
Specifications
Download

Overview

Water Bath DW 50 - Overview | Caresource

Industries

Water Bath DW 50 | Industries - Caresource

Technical Specifications

Temperature
Setting temperature range	+5.00 ºC to 100.00 ºC	Setting accuracy Temperature	0.1 ºC
Temperature unit	Easy to choose Celsius or Fahrenheit.	Temperature sensor	1 Pt100 sensor DIN class A in 2-wire-circuit.

Control technology
Controller	PID microprocessor digital controller.	Display	4 Digit 7 segment digital display.
Calibration	1 point calibration.	Timer	Digital timer from 1 min. up to 9999 min. with delay function.

Standard equipment
Heating element	Heating element made of stainless steel (material no.: EN 1.4301).	Drain system	Integrated with drain tap – easy to empty
External material	Housing material made of galvanized steel, electrostatically powder-coated	Circulation	Built in circulating pump to enhance performance and temperature homogeneous
Main switch	The mains switch with led light and protected against spray water	cover	stainless steel cover reduces heat loss and ensures a uniform temperature

Safety
Alarm	Adjustable limit on the independent temperature safety device	Auto diagnostic system	microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator
Class	Class I in accordance with the EU directive MDD 93/42/EEC	Protection Class	IP20 according to EN 60529
Standards	EN 61010-1 and EN 61010-2-010 in accordance with EU directive 2014/35/EU	Standards	EN 61326:2021 in accordance with EU directive 2014/30/EU

Interior
Internal material	Internal tank made of stainless steel AISI 304	Internal dimensions	625 W X 505 D X 200 H (mm)
Plate	The perforated bottom plate is included.	Volume	50 litter
Liquid level minimum	40 mm	Liquid level maximum	165 mm

Electrical data
Voltage	230 volts, 50/60Hz	Watt	1000 watts

Shipping information
Customs tariff number	8419 8998	Packaging Dimension	420 X 650 X 720 (mm)
Net weight	31 Kg	Gross weight carton	34 Kg

Dimensions	42 × 65 × 72 cm
