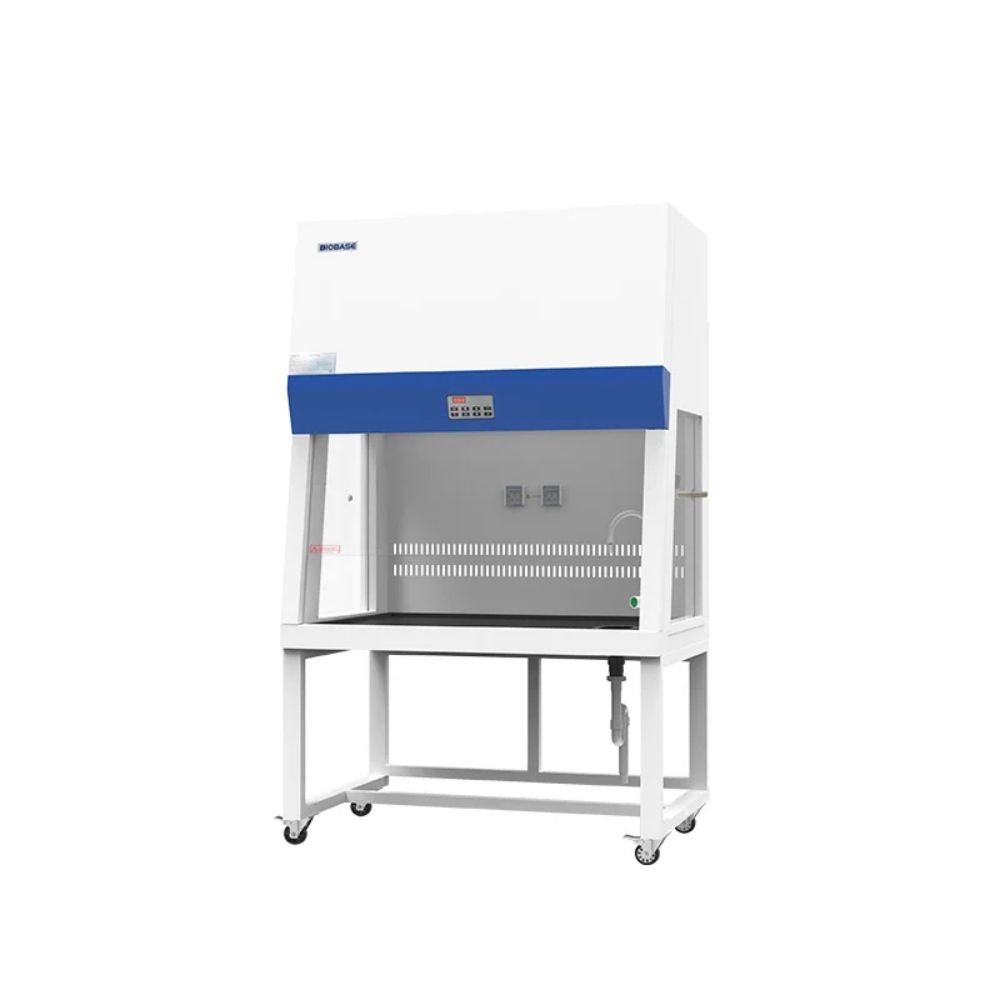

Ducted Fume Hood FH(X) series
AED 0.00
Availability: 60 days after payment
Product ID: FH(X)
Brand: Biobase -China
Introduction:
Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower. Therefore, contaminated fumes, vapors, toxic gasses, aerosol and corrosive substance which are probably generated during experiments could be prevented from spreading to the operator or into the laboratory room. In addition, the polluted air could be purified by the active carbon filter before exhausting through the duct. Thus, the outdoor environment could also be protected.
NOTE: No Exchange No Return Learn More
Warranty: 1 year from the delivery date, covering manufacturing defects. It does not cover breakage or misuse.
Quality is our priority. Our laboratory equipment is built for precision, durability, and dependable performance, ensuring consistent, reliable support for all your scientific needs.
Available on backorder

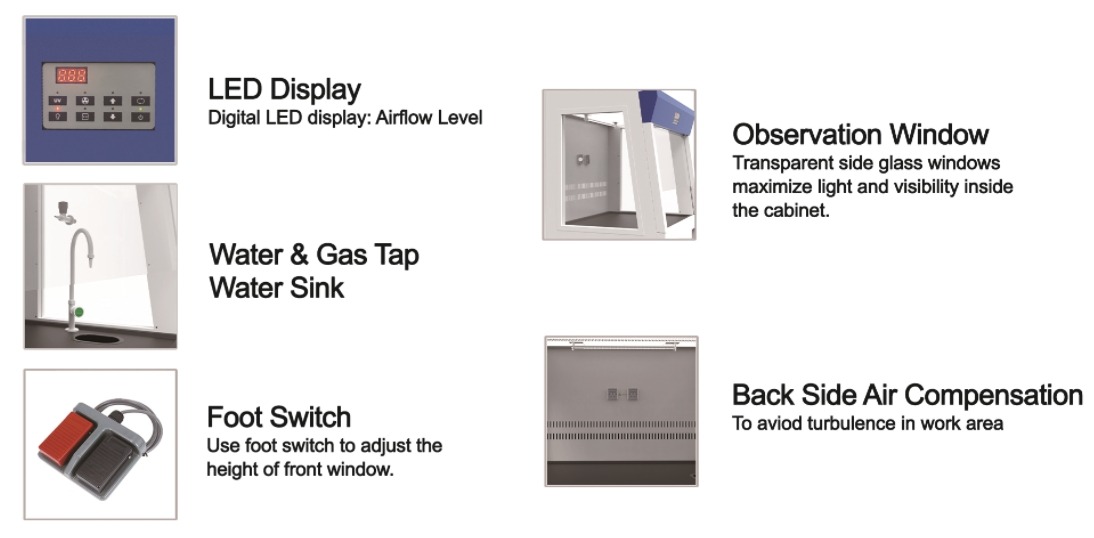

1. UV lamp for sterilization.
2. Motorized front glass window.
3. Resistant to weak acid and alkali.
4. Adjustable air speed: 9 levels.
5. Alarm when filter working time 3500 hours.
6. With memory function in case of power-failure.
7. Back side air compensation, to avoid turbulence in work area.
8. 8°slope front ergonomics design, fatigue-free working posture.
9. Microprocessor control system, LED display shows filter working time.
10. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
Technical Parameters:
| Model | FH1000(X) | FH1200(X) | FH1500(X) | FH1800(X) |
| External Size(W*D*H) | 1000*840*2150mm | 1200*840*2150mm | 1500*840*2150mm | 1800*840*2150mm |
| Internal Size(W*D*H) | 880*730*745mm | 1080*730*745mm | 1380*730*745mm | 1680*730*745mm |
| Max Opening | 520mm | |||
| Work Surface Height | 750mm | |||
| Blower | Built-in centrifugal blowers, Speed adjustable with 9 levels | |||
| Air Velocity | 0.3~0.8m/s | |||
| System Exhaust Volume | 630m³/h | 780m³/h | 990m³/h | 1210m³/h |
| Noise | ≤68dB | |||
| LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 |
| UV Lamp | 20W | 30W | ||
| Emission of 253.7 nanometers for most efficient decontamination | ||||
| Front Window | Motorized, 5mm toughened glass, anti-UV | |||
| Exterior Body: Cold-rolled steel with anti-bacteria powder coating | ||||
| Material | Work Table: Chemical resistant phenolic resin | |||
| Waterproof Socket | 1pc | 2pcs | 2pcs | 2pcs |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Consumption | 400W | 400W | 500W | 500W |
| Standard Accessory | Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 4.3 meters exhaust duct, Active carbon filter, Foot switch | |||
| Optional Accessory | HEPA filter | |||
| Gross Weight | 230kg | 253kg | 290kg | 340kg |
| Package Size(W*D*H) | 1150*1120*1680mm | 1350*1120*1680mm | 1650*1120*1680mm | 1950*1120*1680mm |
